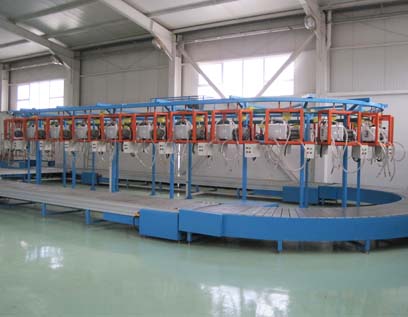

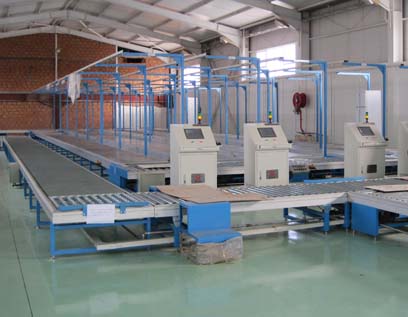

1. Equipment overview:

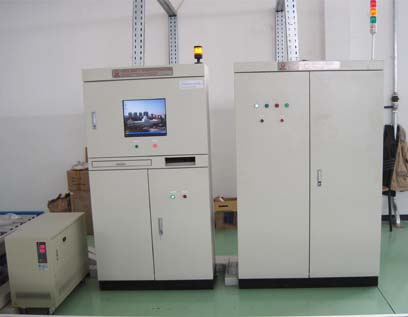

This production line is able to meet the production requirement of specified products with a proper structure, stable operation and adjustable line speed. This production line uses PLC Control and variable frequency speed regulation with high degree of automation, easy operation and reliable performance.
2. Equipment function:
Start the production line – set the parameters of frequency transformer which is used to control the line speed – producing
Final assembly – vacuuming –refrigerant charging– safety detection and refrigerant leak detection – refrigeration performance test- product cleaning -product packaging –put in storage
3. Technical parameters of equipment:
This equipment is provided with a full-automatic conveying function and a variable frequency speed regulation;
All the conveyor lines are equipped with adjustable tension device;
The detection station is equipped with scram button;
Load-bearing of each link plate: ≥50Kg

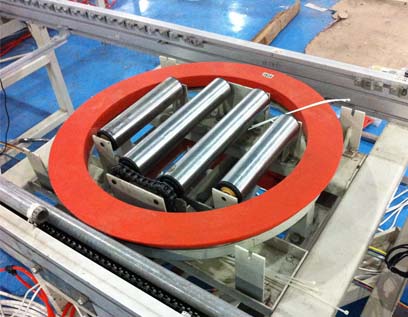

Load-bearing of each roller: ≥50Kg
Load-bearing of auxiliary machine in production line: ≥100Kg
Load-bearing of ball platform: ≥200Kg
4. Preliminary consumptions
1. Power supply: 380V/50Hz
2. Compress air: 0.4～0.7Mp
|
|
|
|
|
|
|
|
|
